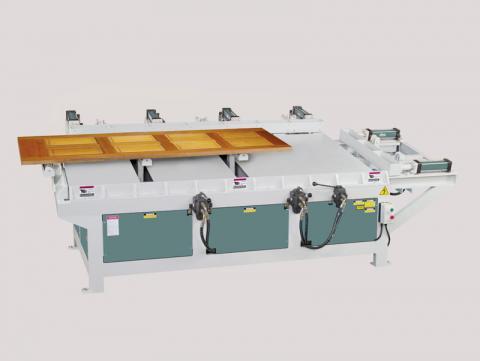

Angle Press 10'

AT-4810

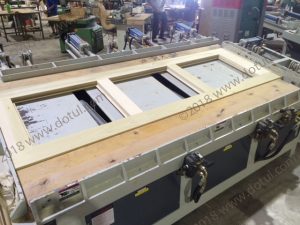

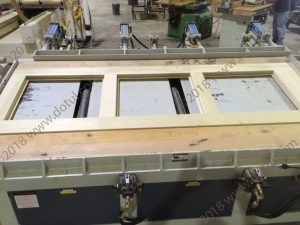

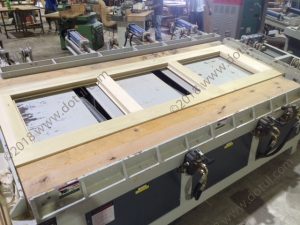

The Dotul Angle Press AT-4810 is used for building stile & rail doors. Place the components in the press using the bottom left corner as a reference point. Both the top and right side of the press can be activated by using the valves in the front of the machine. Once the door components have been pressed together a convienent pop up roller system makes unloading the door easy and is ergonomically friendly.



Specifications:



Max. Working Size

4’ W x 10’ L

Table Size

52” W x 124’ L

Top Side Hyd. Cylinders

4 PCS

Right Side Hyd. Cylinders

2 PCS

Hyd. Pump

5 HP

N.W.

2400 lbs.

G.W.

3250 lbs.
