Horizontal Assembly Press - 10'

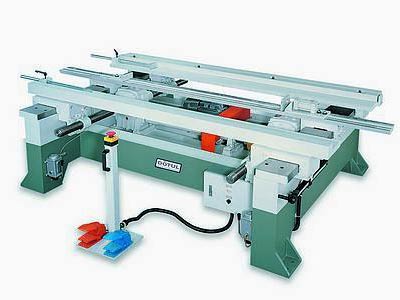

Dotul Horizontal Press - 10'


AT-6120



The 5’ x 10’ horizontal stile and rail door assembly press features a double hydraulic operation with a self-squaring device. Additionally, the machine has a center support to allow the stile and rail doors to be assembled from the inside out. The center of the door is held in place with an air cylinder, mounted on the center support beam, This can be used to hold the door parts in place while the stiles are closing onto the rails, while also preventing the door parts from getting damaged by the coped rails sliding across the profiled door members, when assembling the door. It can be used to assemble fixed louver doors or rolling slat shutters (Optional parts at additional cost).

Both 8’ and 10’ presses are constructed of heavy-duty steel including the stile assembly arms which are operated by double acting industrial hydraulic cylinders. There are lubricators for both sides of the press, ensuring the moving parts are lubricated. Foot pedals are set on a stand with an EMERGENCY STOP.



Specifications:



Floor Space Requirement

72" x 136"

Weight

5000 lbs

Motor

7½ hp 220/440 - 3 phase

Air Pressure

90 PSI
