Face Frame Assembly Table

MT-110

Download Brochure

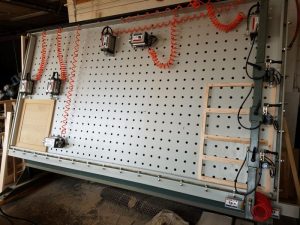

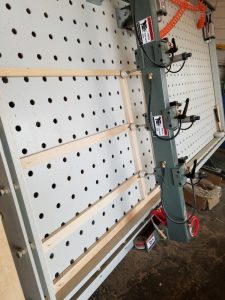

Dotul Face Frame Assembly Table MT-110

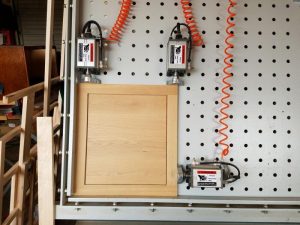

The Dotul Face Frame Assembly Table is a heavy duty assembly table that utilizes sliding arms that put downward pressure on the face frame joints. Movable side clamps can be placed in position to give side clamping pressure while the operator screws the face frames together or assembles a cabinet door.

Features Include:

  • Heavy duty tube frame construction – supports the sliding arms and reduces any frame movement from the clamps.
  • Ergonomically angled work surface – helps reduce operator fatigue.
  • Large work area – multiple frames or cabinet doors can be assembled using the optional 2nd clamping arm.
  • Easy to move sliding clamp arms – accurately and easily position the arms and clamps over the face frame joints.



Specifications:
Side Cylinder #80*100 psi: 8 pcs
Clamp Cylinder #20*100 psi: 6 pcs
Machine Size 9’9” x 4’9“ x 6’9”
Shipping Size 10’9” x 3’3” x 7’3”
N.W. 1390 lbs
G.W. 1610 lbs



Available Models:

All models include:  One (1) vertical hold down; six (6) side clamps + three (3) additional clamps

MT-110-48:      4′ x 8′
MT-110-510:    5′ x 10′
MT-110-512:    5′ x 12′
