Louver Door Router

Downloadable Brochure:

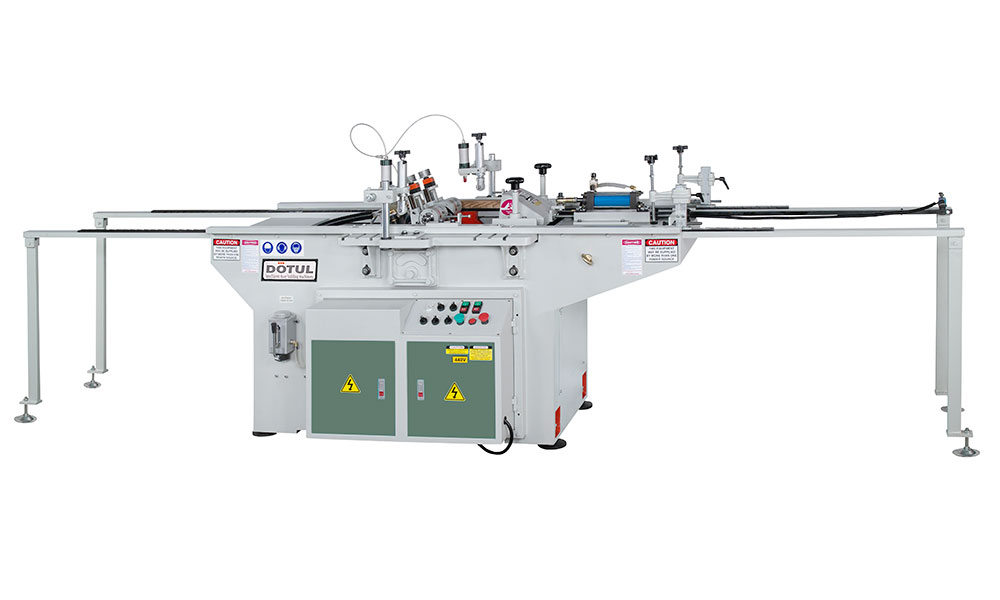

Dotul Louver Groover

MT-250



The Louver Door Router machine is designed to rout stiles for fixed slat louver doors. It will also drill single holes for movable shutters, both left hand and right-hand stiles when required. Versatile routing and stile length capability.



Features Include:

  • Small shop footprint.
  • Versatile hole routing.
  • Easy angle adjustments.
  • 0-90 degrees.
  • Hydraulic stile movement.
  • Stiles over 8 feet long.
  • Easy changeable bit diameter.
  • High RPM on router bits.
  • Allows for clean cut in hardwoods.
  • Large slot size & lengths.
  • Stiles from 3/4" to 4" thick.
  • Stiles from 1 1/2" to 5 1/8" wide.
  • Deep slot routs up to 1 3/16".
  • 20 slots (40) per minute per pair.


Specifications:



Max. Length of Slot

2" (50 mm)

Max. Depth of Slot

1 3/16" (30 mm)

Max. Distance between Slots

4" (100 mm)

Min. Distance between Slots

13/64" (5 mm)

Slot Tilting Angle

0-90 degrees

Max. Size of Workpiece

4" x 5 1/8" (H x W)

Min. Size of Workpiece

25/64" x 1 3/16" (H x W)

Working Speed (each side)

20 slots/min.

Cutter Spindle Speed

12000 RPM

Cutterhead Motor

5 HP

Cutterhead Oscillating Motor

1 HP

Work Material Movement

Air-Hydraulic

Machine Size (L x W x H)

158" x 45" x 47"

Machine Weight

2100 lbs
