DT-526
Download Brochure:

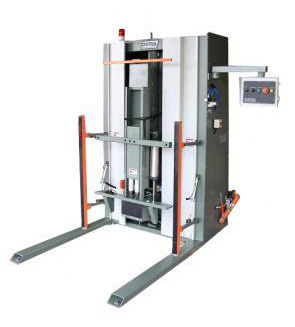

Dotul Vertical Door Loader & Off-Loader DT-526
Using the DT-526 Vertical Door Loader & Off-Loader at the end of the machining functions on the door, allows for the door to be unloaded and loaded on a pallet or door cart.
With the flip of a switch, the loader will change functions and allow the door exiting from the vertical door position be re-stacked (jambs cannot be attached).
Features Include:
- Adjustable air clamping for light or heavy doors.
- Safety warning light when machine operates.
- Guarded mechanical areas for safety.
- Steel surfaces covered w/anti-marking materials.
- Easy access to electrical control panel.
- Air nozzle and hose for cleaning doors.
- Swing away operator control panel.
- Emergency stop arm.
- Automatic door lifting and positioning.
- Small shop foot print.
- Will work with most vertical door machines.
- Will load doors with raised moulding on both sides.
- Doors with raised moulding two sides.
- Doors from 18″ – 48″ wide.
- Doors up to 108″ in length.
- 1 3/8″ to 2 1/4″ thick doors.
- Doors up to 250 lbs.
- Re-stacking door capability.
|
Specifications: |
|
|
Door Width |
18” to 48” |
|
Door Height |
Up to 9’0” |
|
Door Thickness |
1 3/8” to 2 ¼” |
|
Door Weight |
Up to 250 lbs. |
|
Uses |
3 cfm of air 90 psi |
|
Electrical |
230/460 volt 3 phase |
|
Width |
54” ~ with control panel – 82” |
|
Length |
90” |
|
Weight |
1800 lbs. |
