Door & Panel Sizer

Downloadable Brochure:

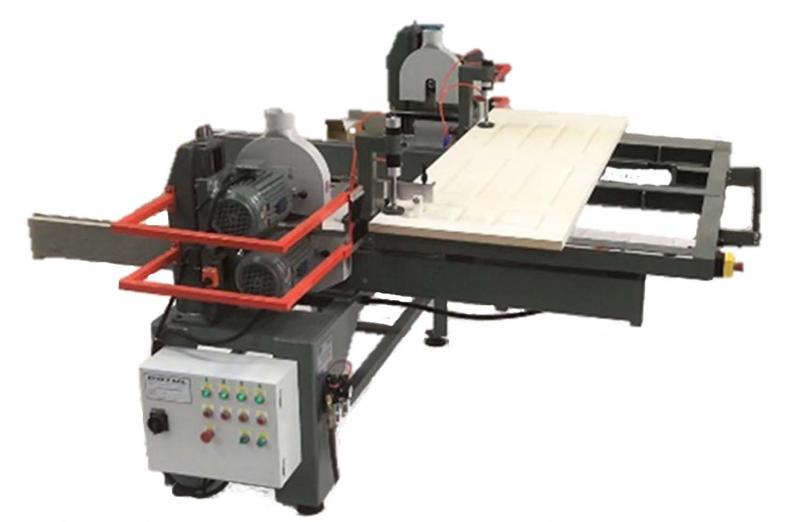

DT-610

The Dotul Door & Panel Sizer, DT-610, sizes to length a door or panel, top & bottom using four blades that score and cut, producing a clean cut on both ends.

Features and Benefits:

  • Easy to load table - Safely locks in place while loading.
  • One operator can easily load the door or panel - Greater efficiency.
  • One stationary head and one movable head - Easy to change.
  • Fixed side, saw tilts; Movable side, saw is fixed - Allows for beveling.
  • Dust collection ports for all four saw blades - Easier cleanup.
  • Two 6" saw blades score the bottom prior to the main blades - For a clean cut.
  • Two 12" main saw blades are used with a 5 HP motor - Producing a quality cut.
  • Dust Collection Kit:  Can be hooked up to a central dust collection system.



Specifications:



Working Length

6’ – 8’

Working Width

1’ – 4’

Working Thickness

3”

Left (fixed)

Saw Blade Motor:  2 HP 1 PH; 5 HP 1 PH

Motor Tilting Degree:  90° - 85°

Right (mobile - manual adjustment)

Saw Blade Motor:  2 HP 1 PH; 5 HP 1 PH

Motor Fixed:  90°

Digital Display (horizontal)

3

Cylinder Pressing

Push Down x 2 (manual)

Working Desk (linear slide)

5’ x 4’
