DT-705

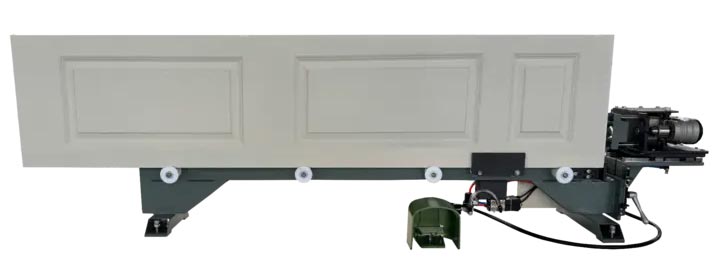

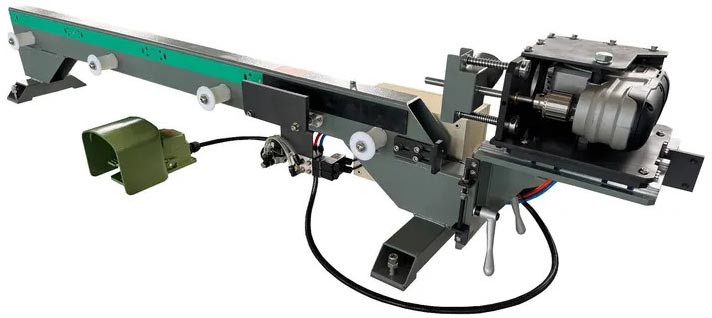

The Dotul Ball Catch Machine (DT‐705) is a quick, easy, and reliable way to drill for ball catches in passage doors, instead of using handheld fixtures which can be slower not as accurate and take some skill.
Features and Benefits:
- Quick change adjustment for drilling 2 ½”~5” from the edge of the door with a mechanical stop. Allows for quick changes and customization of spacing from the edge of the door.
- Ball catch drill bit self-centers on the edge of the door making for quick and reliable accuracy of the ball catch.
- A pneumatic clamp activated by a foot pedal holds the door securely in place while drilling for the ball catch.
Specifications:
| Door Width: |
1’0” ~ 4’0” |
| Door Height*: |
2’0” ~ 9’0” |
| Door Thickness: |
1 3/8” ~ 2 3/4” |
| Ball Catch Drill Diameter: (1 drill bit is included) |
¾”, 7/8”, 15/16”, 1”, 1 1/8” |
| Electrical: |
120/1/60 – 20 amps |
| Pneumatic (Clean & Dry): |
1 cfm @ 90 psi |
| Floor Space: |
3’W x 8’L |
| Approx. Net/Shipping Weight: |
300 lbs./ 450 lbs. |
| Shipping Dimensions: |
3’W x 8’L x 2’T |
| Approx. Cycle (Under normal operation): |
4 seconds |
| Vacuum Connection: |
2” |
| Optional: |
Extra drill bits |
Features:
- Type: Prehung Door Machinery
- Build To Order
- Stock #: 2930
- Brand: FDOTUL
